Hydraulic Systems & Components

Counterbalance Valves / Manifolds / Power Units

Valves and power supply for motors, winches and cylinders, designed to your circuit diagram, pressure, flow and space. Cavities, passages and ports are made to suit the machine.

Manifold material: Aluminum / ductile iron / steel
Port threads: Metric / BSPP / SAE / NPT
Control: Manual / electric / PLC

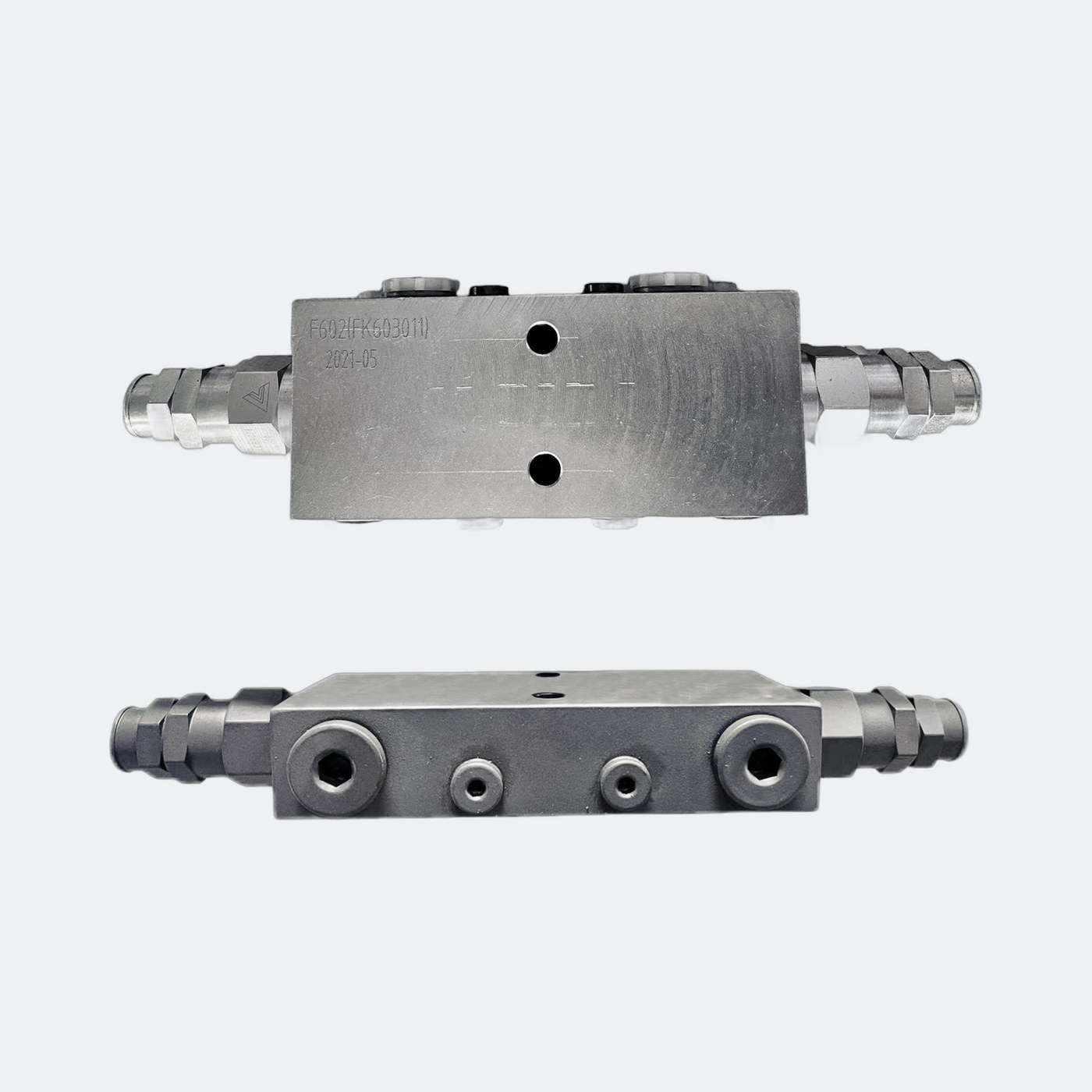

Counterbalance valves and manifold blocks

Counterbalance valves · manifold blocks

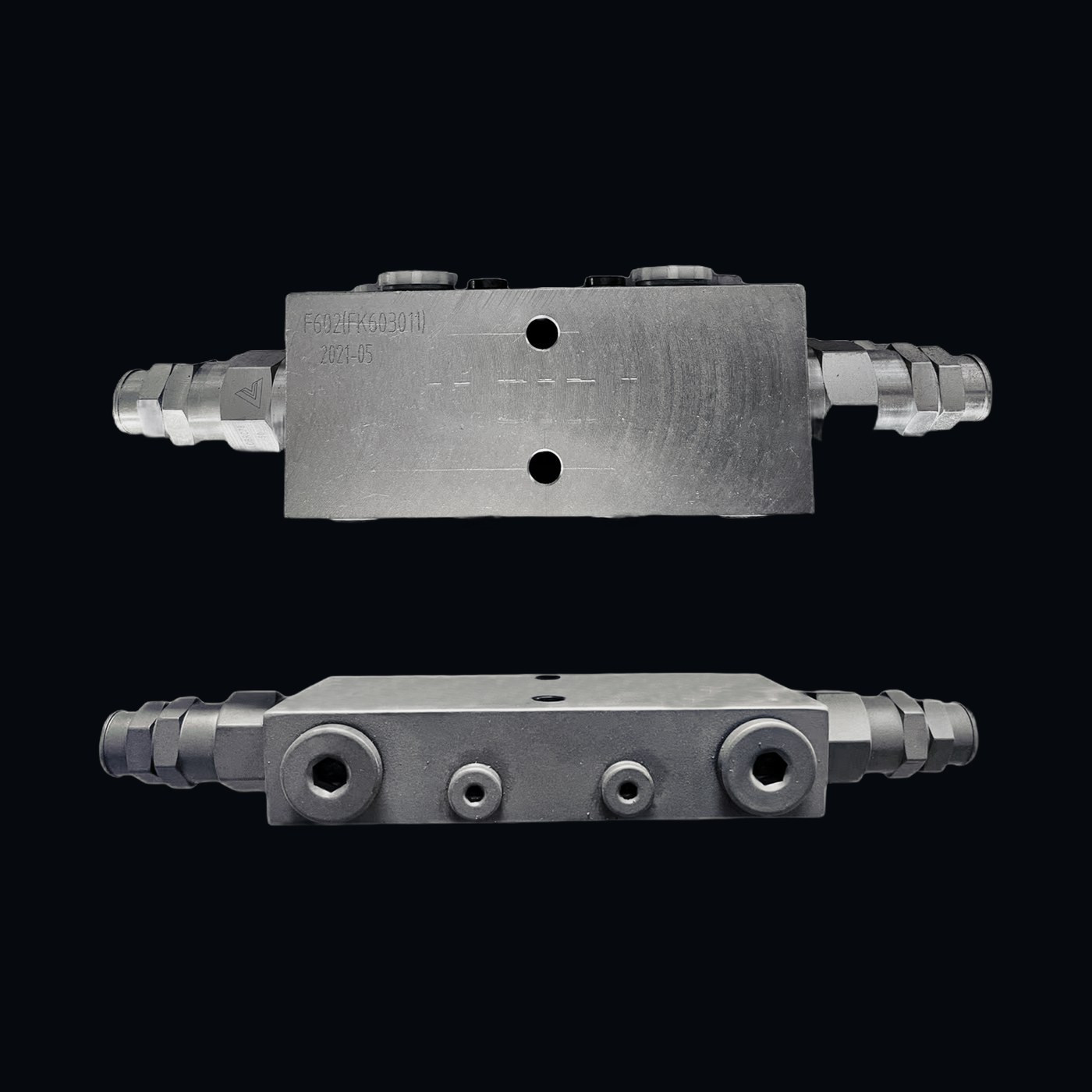

Counterbalance Valves and Manifolds

Counterbalance valves control lowering and hold the load, on hydraulic winches, motors and cylinders. Manifold blocks are designed from the circuit diagram.

Valve functions: Relief, check, counterbalance, flow control, directional
Material: Aluminum, steel, ductile iron
Testing: Pressure, leakage, function

Product page (Chinese)

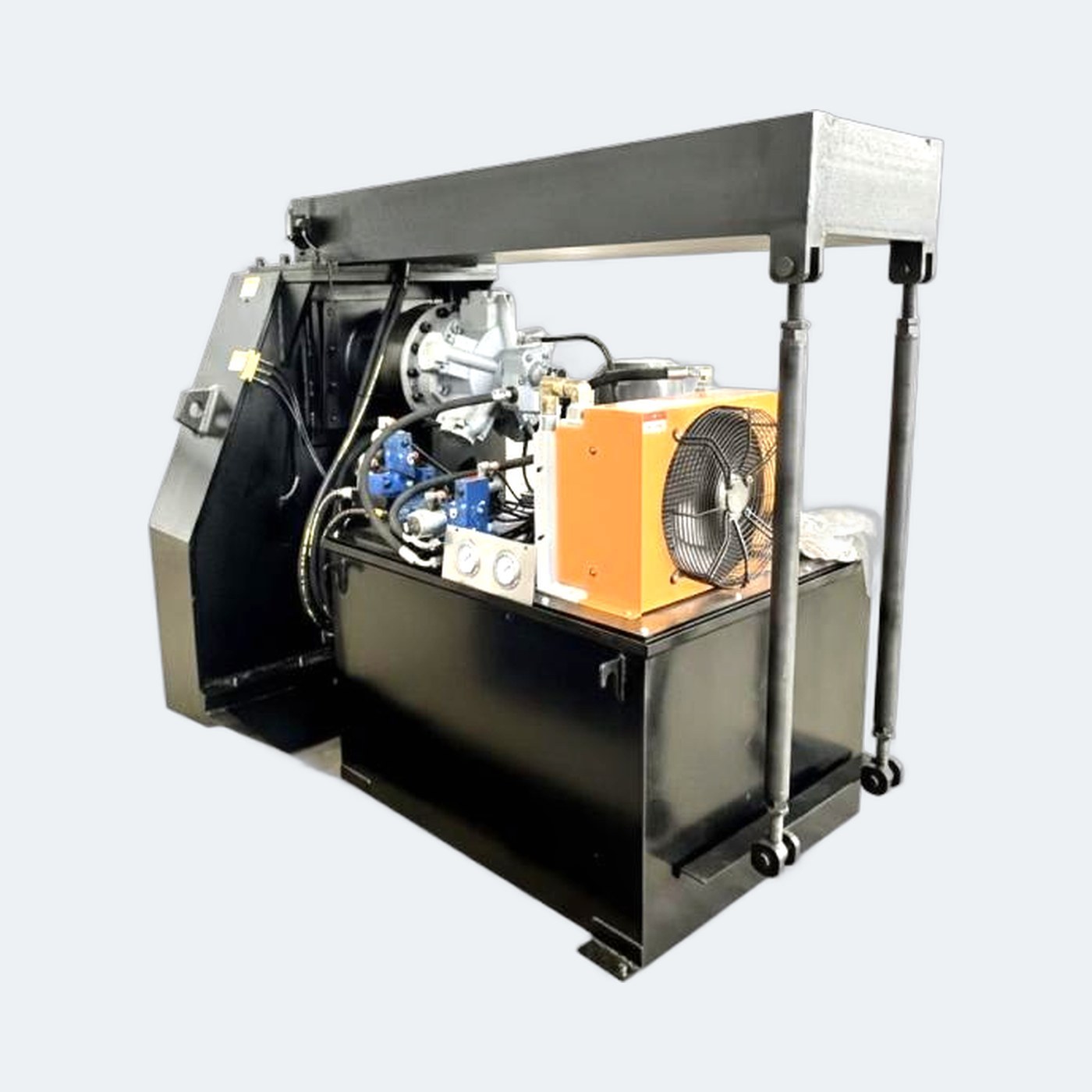

Hydraulic power supply

Power Units

Power for motors, cylinders and winches, and for brake release, lubrication and cooling circuits. Tank, pump and valves are sized to the actuators and duty.

Components: Electric motor, pump, tank, manifold, filter, cooler
Power supply: Voltage and power to suit the machine
Control: Manual, electric, sensor feedback, PLC

Ask about a power unit

Match valves and power units to the circuit

Do not swap counterbalance valves or manifolds casually. Different flow, cracking pressure, circuit and load behavior can cause shaking or runaway when lowering. Send the circuit diagram, or describe the motions you need.

Typical uses · tell us the actuator

Hydraulic WinchesHoist lowering control, load holding

Hydraulic MotorsSlewing and travel circuits

CylindersLift cylinders, outriggers

Auxiliary circuitsBrake release, lubrication, cooling

For a quote, please send

Circuit diagram, or the motions you need
Rated pressure, peak pressure and max. flow
Valve functions needed
Port threads, orientation and mounting face
Power unit: voltage, power and tank space
Test requirements

Replacing an old unit

Please send these photos:

Nameplate
Photo of the whole manifold or power unit
Port positions and markings
Mounting holes
Circuit diagram (if available)

If the nameplate is unreadable, we work from dimensions and duty.
