Hydraulic Winches

JSJ / NJ Hydraulic Winches

Marine winches and hoisting or pulling winches for construction machinery, configured to the duty. Hydraulic motor, planetary gearbox, brake, valve block, drum and frame. Catalog models are the starting point; drum, drive and frame are designed to the load, wire rope, space and hydraulic supply.

Catalog models: 49
First-layer pull: 5–480kN
Custom capacity: 50t class

NJ series · side-plate mounting

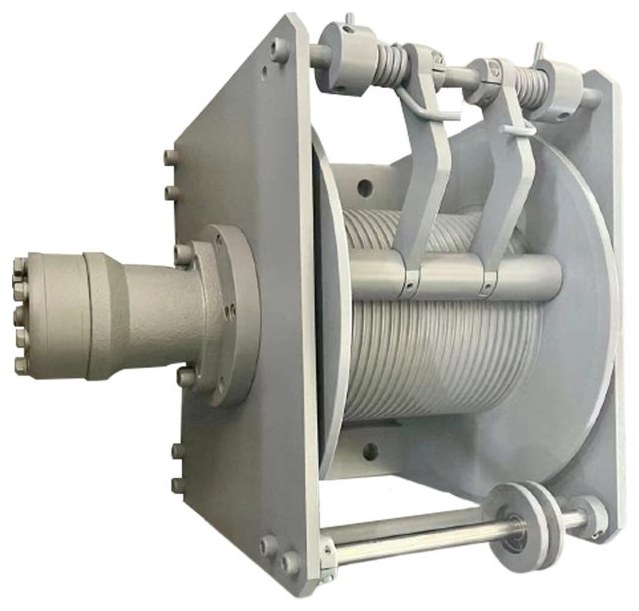

NJ1.75

First-layer pull: 10.0–13.0kN
Rope diameter: 8 / 10mm
Hydraulic Motors: BM2-125、BM2-160

Product page (Chinese)

NJ series · with base

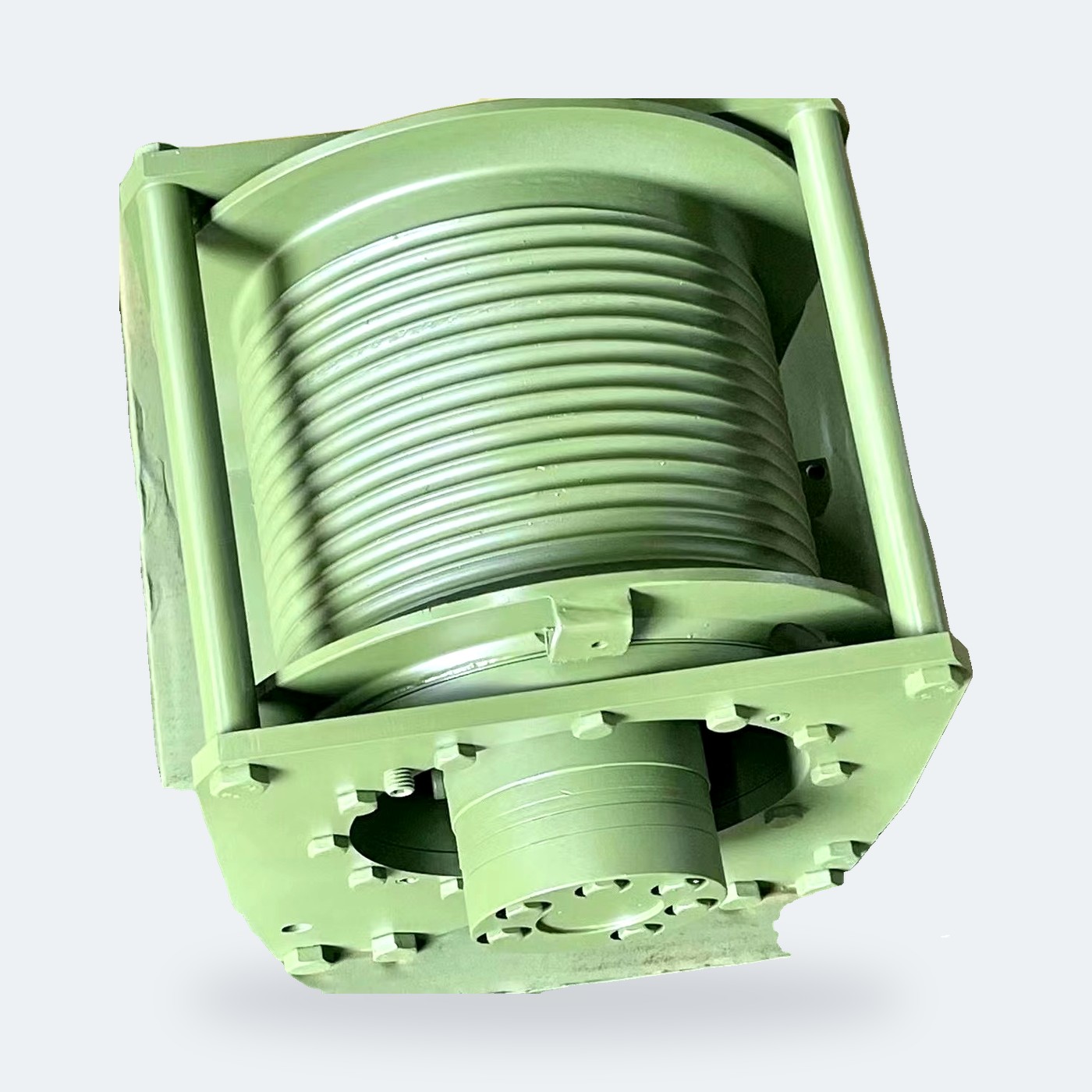

JSJ1.75

First-layer pull: 6.20–10.2kN
Rope diameter: 7 / 8mm
Hydraulic Motors: BM2-100、BM2-160

Product page (Chinese)

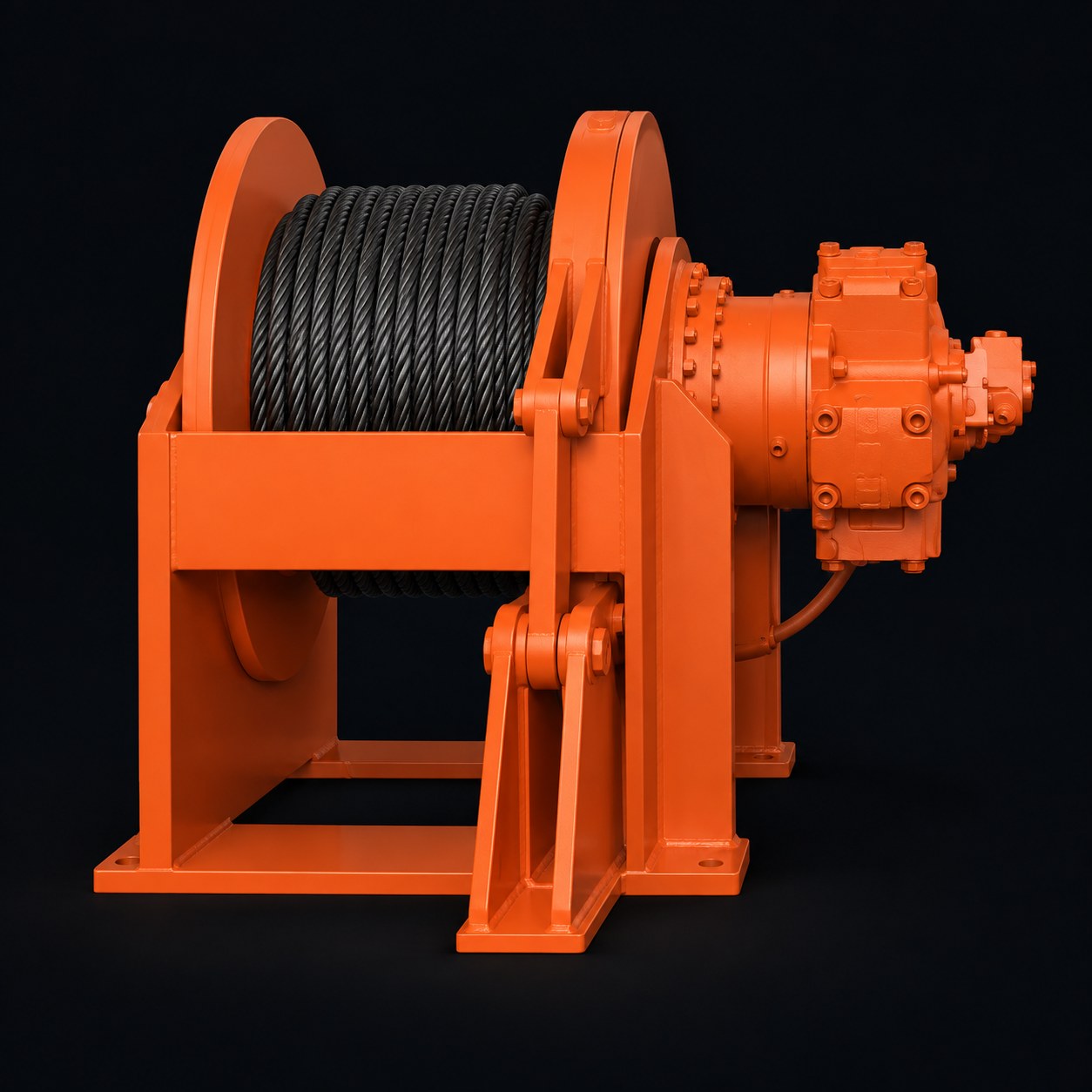

JSJ Hydraulic Winch

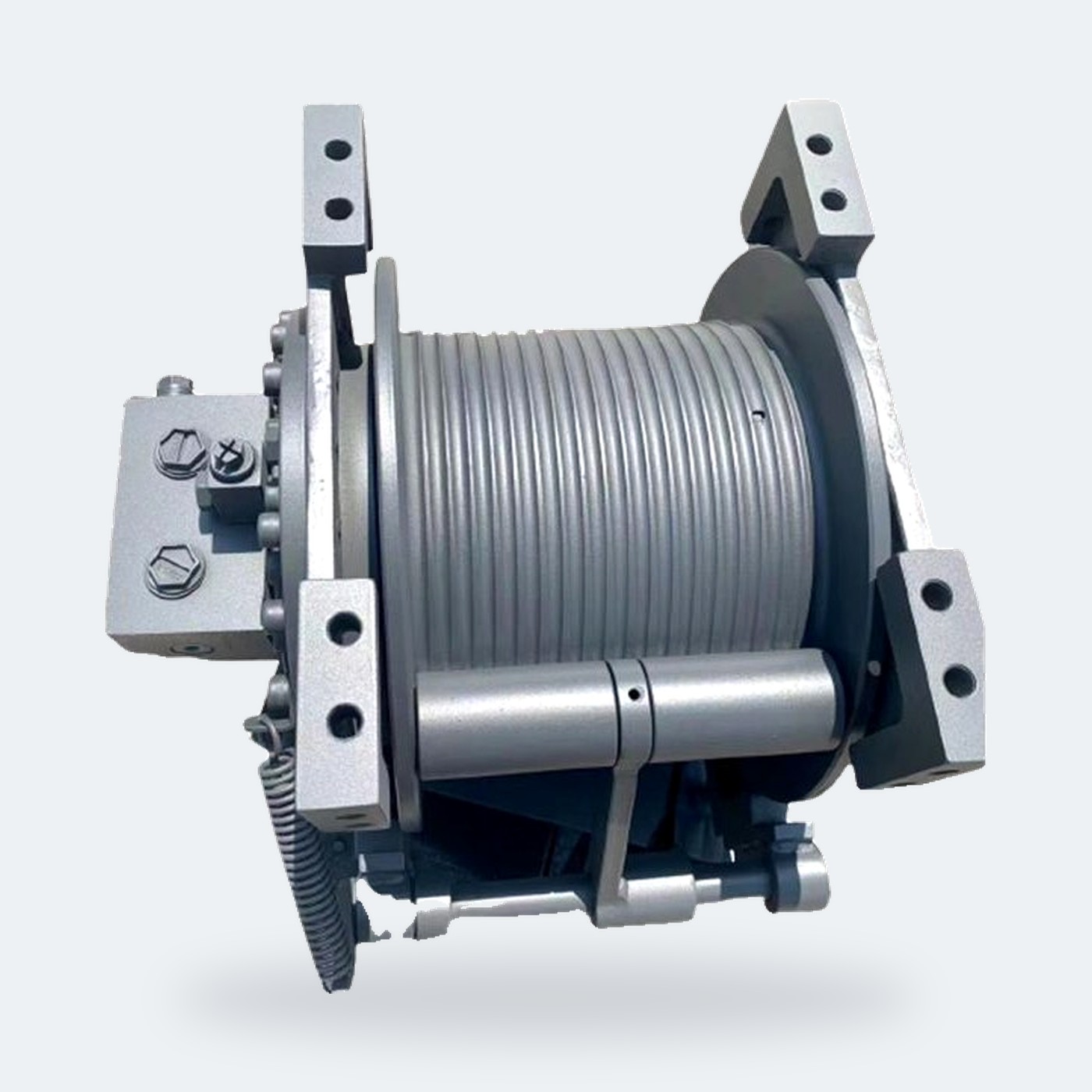

JSJ2.5

First-layer pull: 5–24kN
Rope diameter: 10–14mm
Hydraulic Motors: JNM05、JNM1

JSJ Hydraulic Winch

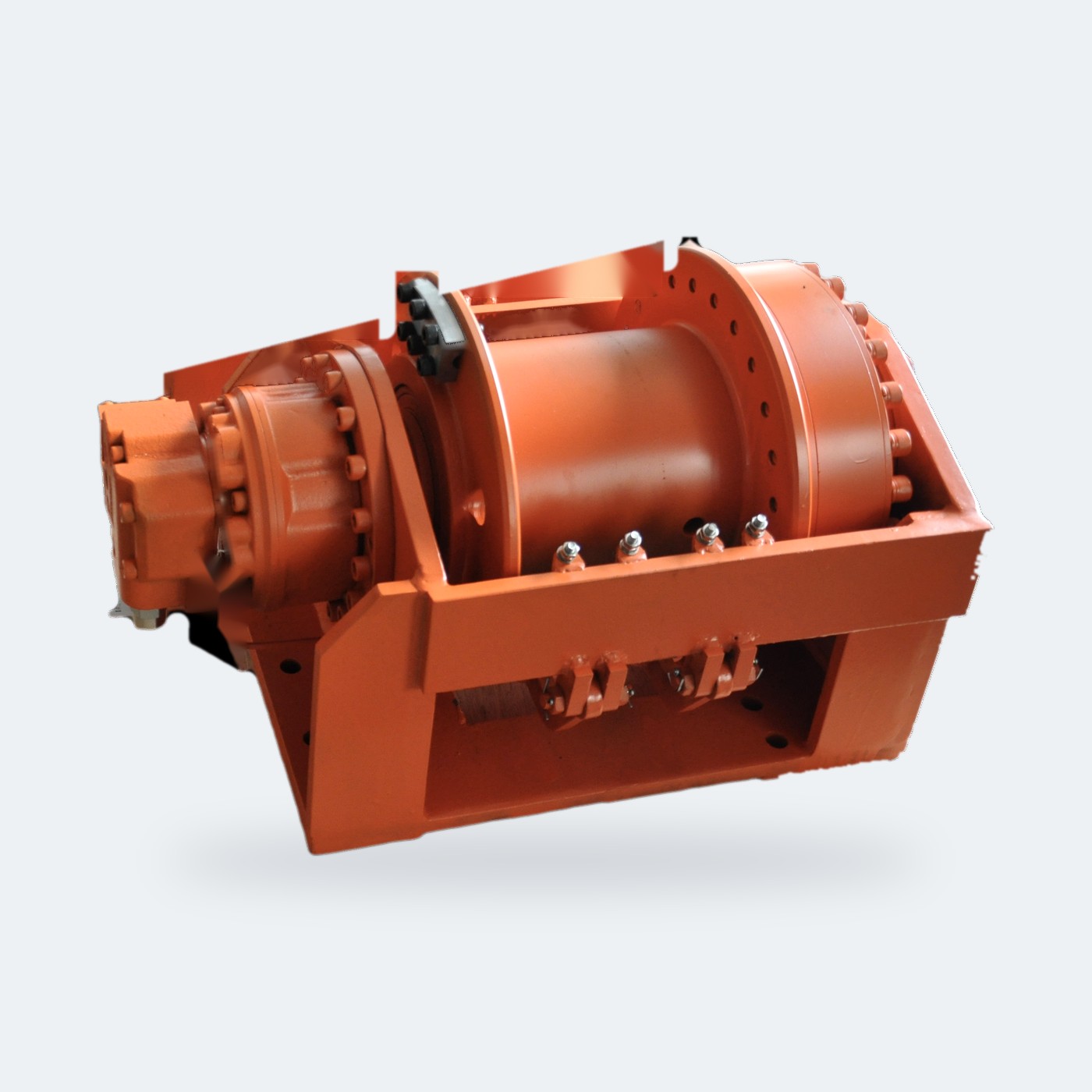

JSJ3

First-layer pull: 20–42kN
Rope diameter: 14–18mm
Hydraulic Motors: JNM1、JNM2

JSJ Hydraulic Winch

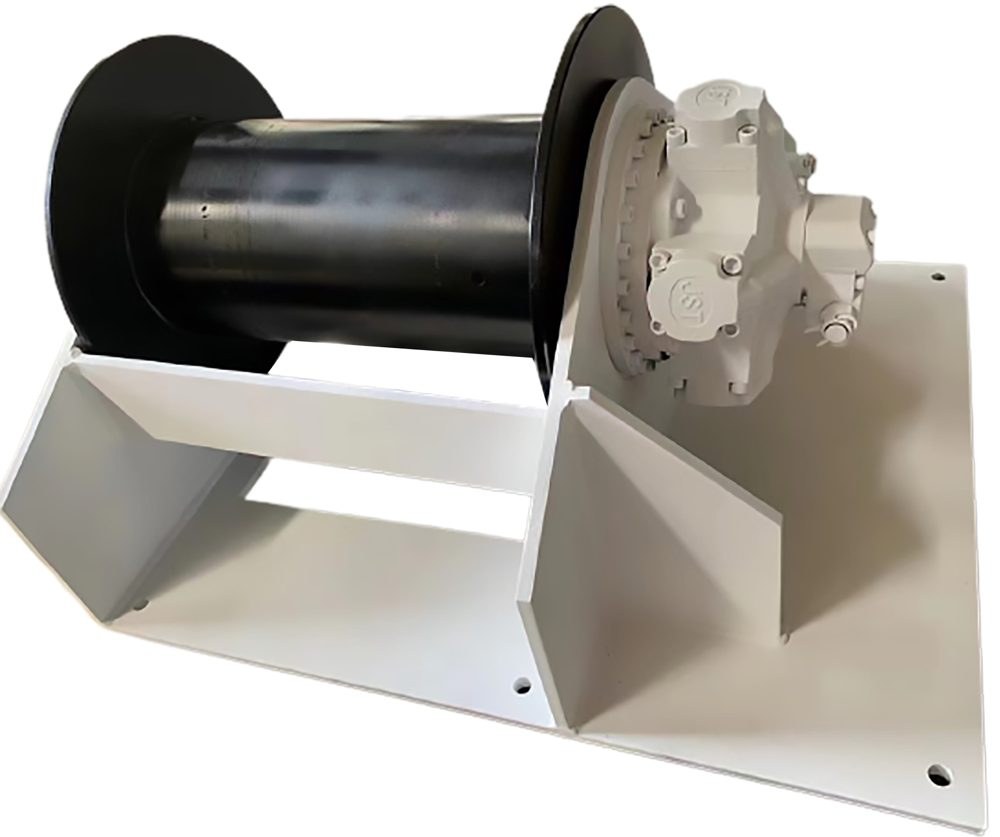

JSJ4

First-layer pull: 40–80kN
Rope diameter: 16–24mm
Hydraulic Motors: JNM2–JNM4

Product page (Chinese)

JSJ Hydraulic Winch

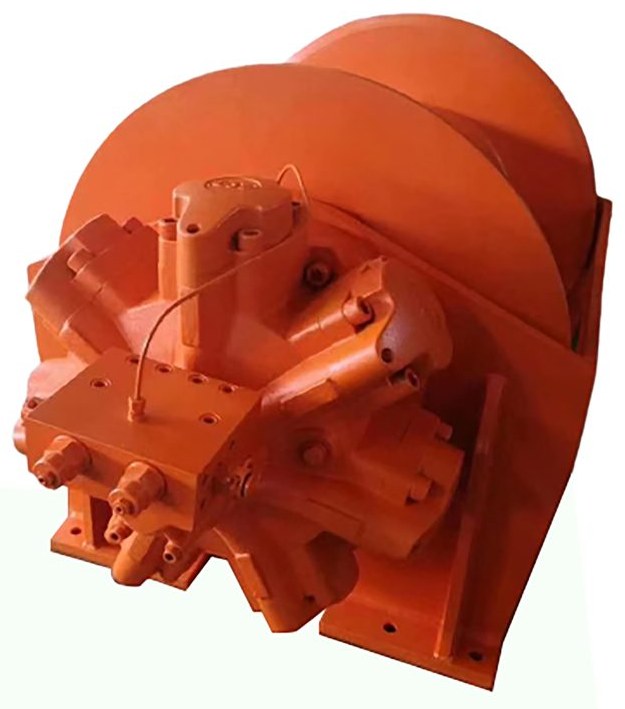

JSJ5

First-layer pull: 70–130kN
Rope diameter: 22–28mm
Hydraulic Motors: JNM4–JNM6

Product page (Chinese)

JSJ Hydraulic Winch

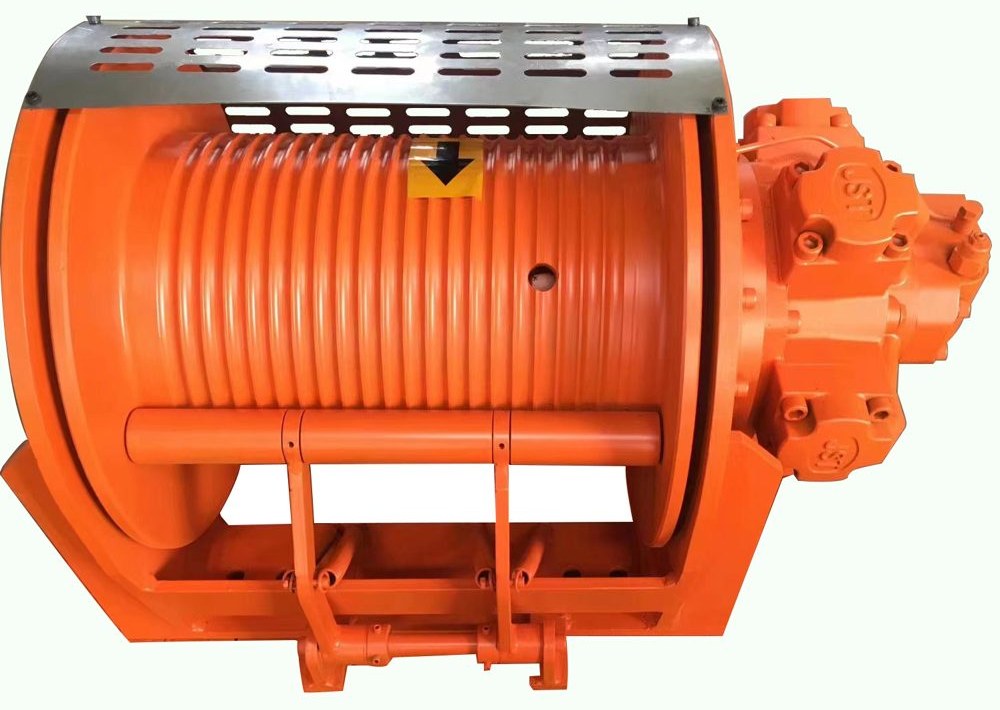

JSJ6

First-layer pull: 100–150kN
Rope diameter: 26–30mm
Hydraulic Motors: JNM5、JNM6

Product page (Chinese)

JSJ Hydraulic Winch

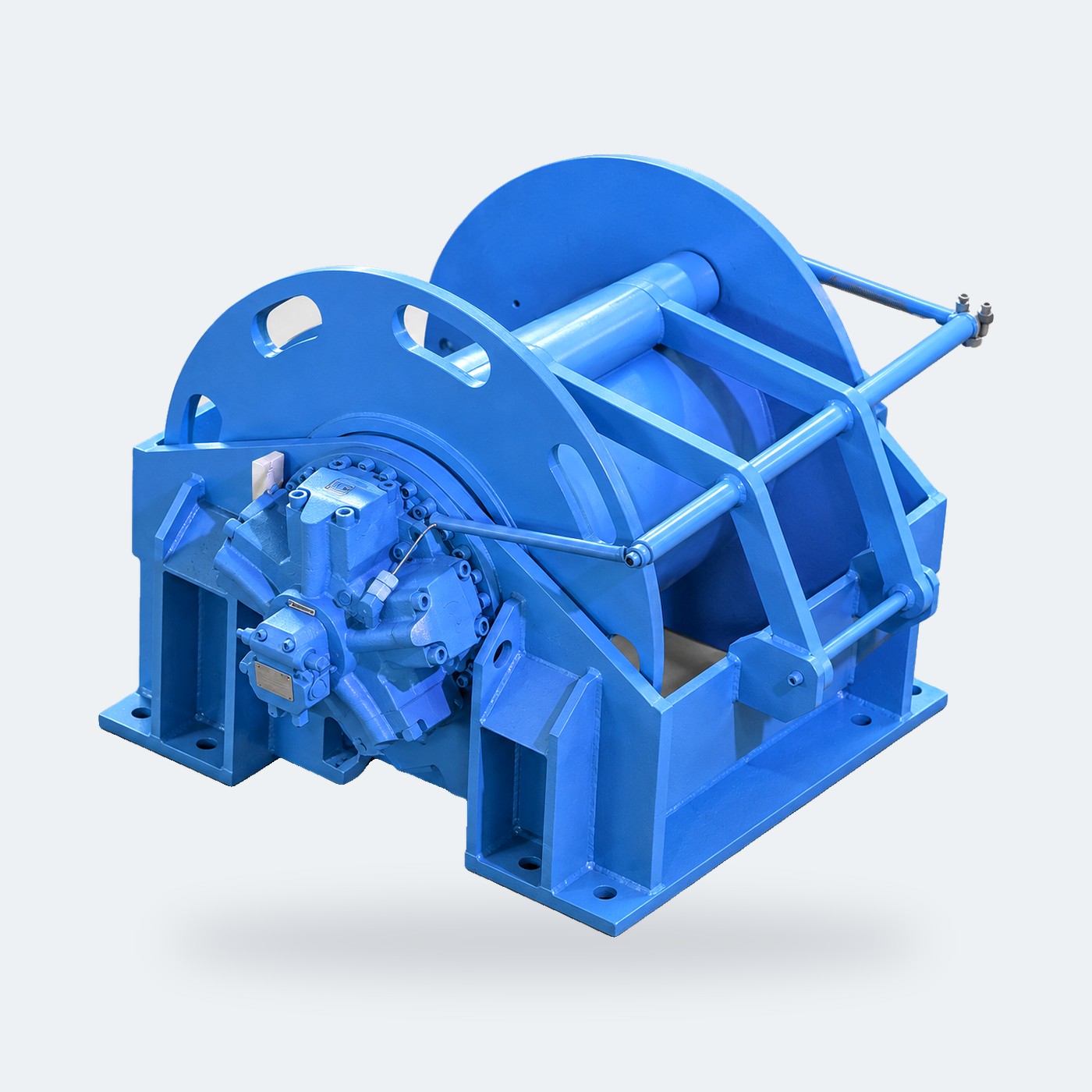

High-pull models

First-layer pull: 300–480kN
Rope diameter: 34–40mm
Working pressure: 14–26MPa

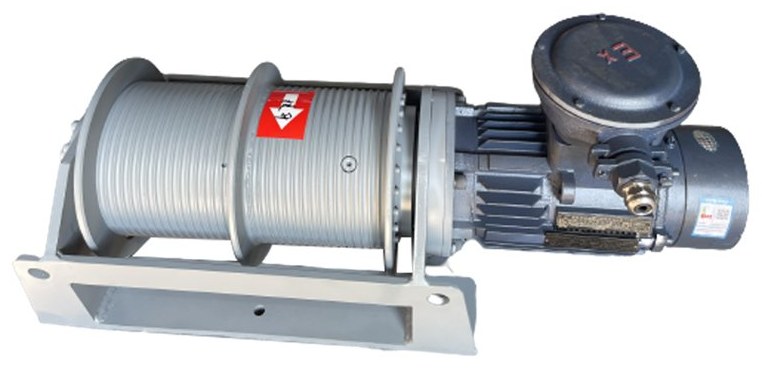

JSD series

Electric Winch

Electric motor, planetary gearbox, brake and drum, for machines with little or no hydraulic power. Pull and rope speed are set to the load and duty.

Power supply: Voltage and duty to suit the machine
Control: Lever, control box, radio remote, PLC

Product page (Chinese)

Also available: JSJ2.5A(first-layer pull 5–17.5 kN, rope 8–11 mm), JSJ3A (15–35 kN, 10–13 mm) and JSTY special-duty hydraulic winches(for special drum capacity, mounting or control requirements).

Pull depends on the rope layer

Catalog pull is on the first layer. As rope builds up, the radius grows, pull drops and rope speed rises. Comparing winches only by "tonnes" can leave a winch that will not pull on the outer layers.

Typical uses · hoisting and pulling need different brakes and rope speeds; tell us which

HoistingHoisting on crawler cranes, truck cranes and pipelayers

Drill rigs and grabsDrill rig auxiliary hoist, grabs

Pulling and towingPulling and towing for work vehicles and equipment

Crushing equipmentPulling for crushing equipment

For a quote, please send

Required pull, and on which rope layer
Rope speed
Rope diameter and rope length on the drum
System pressure and available pump flow
Mounting position and space; a drawing is best
Hoisting or pulling; whether the load must hold in mid-air
Duty: continuous or intermittent

Replacing an old winch

Please send these photos and measure the drum:

Nameplate
Front and side of the unit
Mounting base
Port positions
Drum diameter and width

If the nameplate is unreadable, we work from dimensions and duty.
